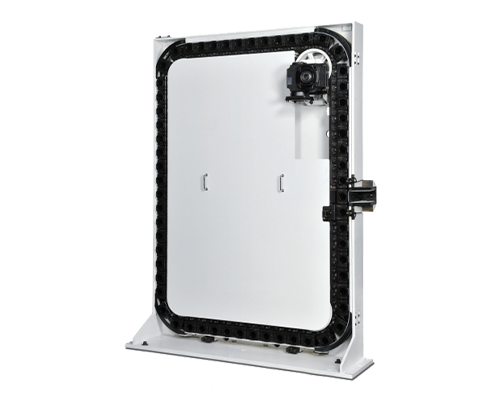

Horizontal Machining Center Tool Magazin
H4FHF(40 x 60T)
Separate type + rotary sub-tool set + cam box tool change mechanism
| Split pocket/pocket rotates 90º | |||
| Specifications | #40 BT / CAT / DIN / HSK40 / HSK50 / HSK63 | #50 BT / CAT / DIN / HSK100 | |
| Capacity | 40T / 60T | 40T / 60T | |
Maximum tool diameter Neighboring Knife/Empty Neighboring Knife | mm | 95/150（40T） 95/190（60T） | 125/250 |
| Knife weight | kg | 8 | 20 |
| Tool change time | sec/60hz | 1.5 | 2.9 |
| Magazine speed | sec/tool | 0.3(servo） | 0.3(servo） |
| Tool Management Mode | deterministic | deterministic | |
| Tool change type | Roller Cam Cam | Roller Cam Cam | |
